Rack material: aluminum profile frame, anti-rust, anti-corrosion (with 304 stainless steel is the same food grade material, compared with stainless steel, no sharp corners, warping, to protect workers.) ; The baffle materials between storage locations are stainless steel wire and anti-static plastic baffle strips.

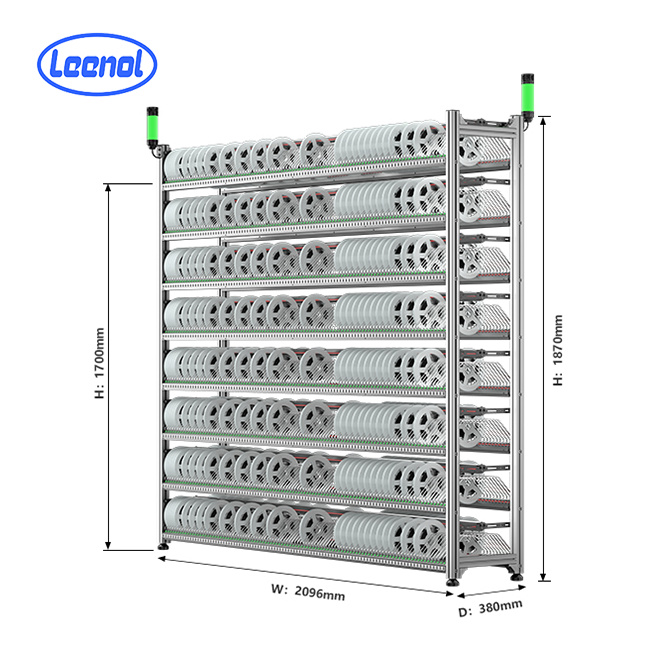

Rack structure: A8-type intelligent rack 8 layers double-sided, storage position width can't be adjustable, can store 1600pcs 7-inch standard SMT material;
Electrical part: light strip components and photoinductive components are integrated design, the circuit board is not exposed, simple maintenance and replacement, easy to maintain and reduce maintenance costs. The light sensing component adopts the principle of measuring grating, which is stable and reliable, and can effectively avoid the interference caused by transparent plate, tail plate material and plate cavity. One controller can be connected to 4 sets of material racks, and the cost of wiring and networking is reduced by 70%. Wireless controller and voice music alarm light and other functional options are available.
| Model | SMD2S-A8 |
| Voltage | DC24V |
| Working flow |
100 indicators indicating the warehouse location ≤500mA@DC24V Maximum total current of seven colors ≤8200mA@DC24V |
| IB Communication bus | 38.4K baud rate, maximum transmission distance of 200 meters |
| Electric protection | Over current, over voltage protection, reverse protection |
| Max indicate position | 100 |
| Response time | within 30ms |
| Working environment |
Temperature: -20℃ to + 50 ℃（-4℉ to +122℉） Humidness：90% at 55℃ |
Different type can be choose:
Our professional sales team are waiting for your consultation.
