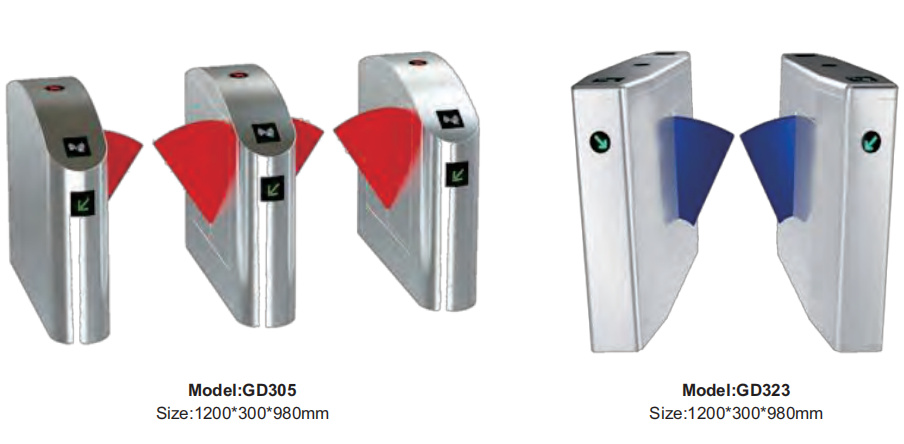

ESD turnstile access control system

Anti-static Access System (integrated static test data management access control system) is an advanced product combining static test, electronic access control system and computerized management software; in many places where electrostatic protection zone (EPA) is installed, electrostatic shoe and static wrist The tests are carried out in the traditional manual login or supervision mode, which is difficult to implement and even complete, and it is difficult to obtain the trust of customers and management. It also forms a great potential hole in the static grounding of personnel.

In view of these shortcomings, the anti-static access control system proposes a direct and effective solution to ensure that the operator is ready to statically ground the personnel when entering the EPA area; and combines the three-roller gate as the control device for the flow channel. It can provide an orderly and civilized way for the entry and exit personnel to prevent illegal entry and exit, and quickly control the downfall in emergency situations and organize personnel to evacuate.

Wing door material: acrylic plate

For inddor use

Enviroment: for indoor and outdoor use

User: user over 1000mm in height, childeren to use it alone are not recommended

Box material：SUS304 (customized)

Internal structure: frame structure

Passing frequency: 20-30 persons/min

Channel width: 600MM

Control method: Relay signal input/dry contact signal

Input voltage: AC220V

Total power: 110W

Operating temperature: -30℃ to +55℃

Humidity:

Noise: 65dB below

Operational cycle time: 3 million times or 3 years (MTBF)

Average lifetime: 5 million times or 5 years

Gate switching time:

Customaztion Solution：

1. Simple version of ESD access control:

Three test modes can be manually adjusted:

Bracelet only

Only for electrostatic shoes

Simultaneous testing of wristbands and electrostatic shoes

2. Swipe card + ESD access control

7-inch LCD screen can display employee information and test static resistance value,

A variety of card swiping modes are available,

The web version of the access control software is easy to install and operate, and all test records can be queried.

3. Fingerprint + ESD access control

7-inch LCD screen can display employee information and test static resistance value,

A variety of card swiping modes are available,

The web version of the access control software is easy to install and operate, and all test records can be queried.

4. Face recognition + ESD access control

7-inch LCD screen can display employee information and test static resistance value,

A variety of card swiping modes are available,

The web version of the access control software is easy to install and operate, and all test records can be queried.
