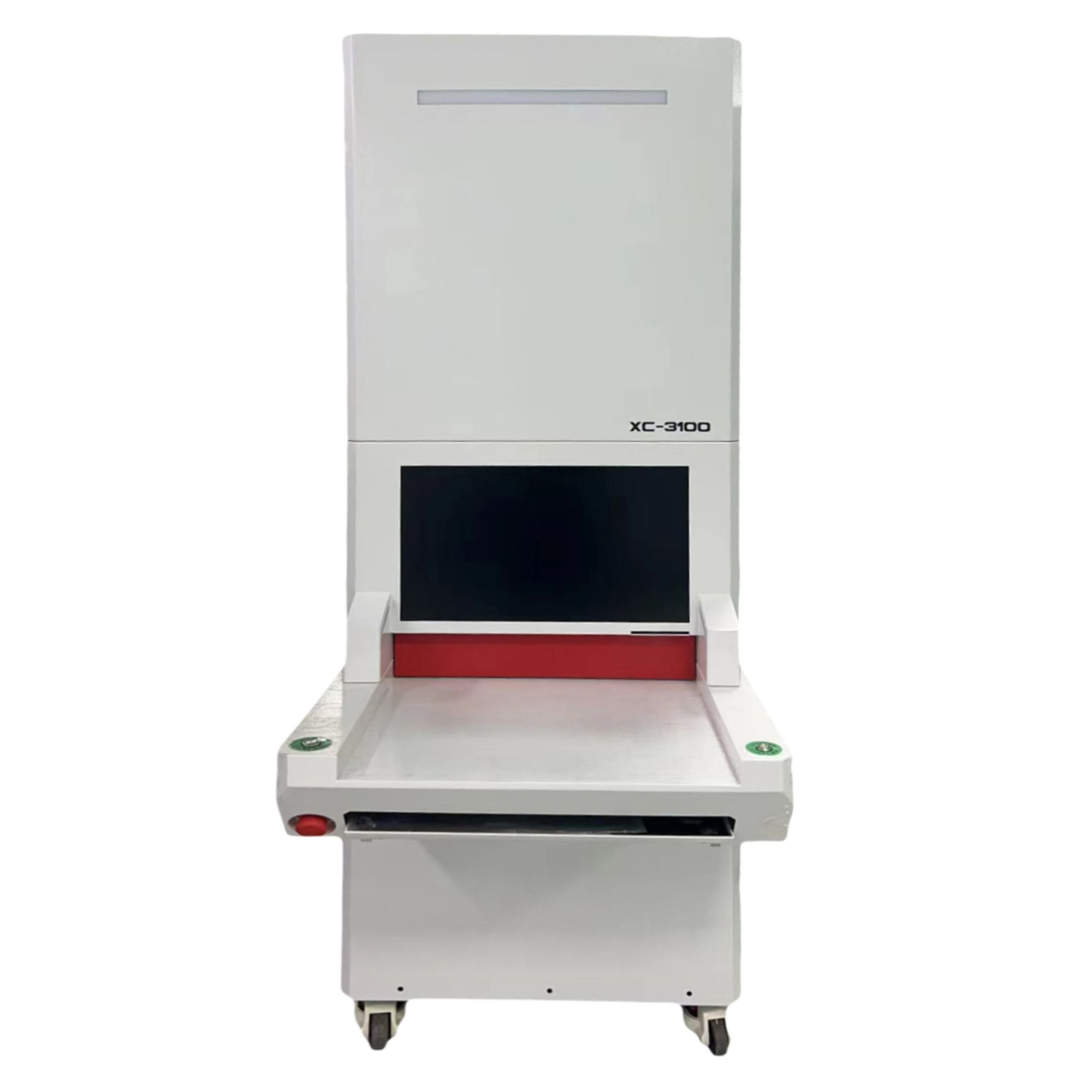

| Model： | XC-3100 |
| X-Ray tube type | Closed |
| Spatial | 100um |
| Light tube voltage | 50KV |
| Light tube current | 1000uA |
| Pointing speed | 7-14 S /plate（CHIP 0402） |
| Accuracy | 99.99% （0201 As an example） |
| Diameter of the largest disc | 415mm（4-15INCH） |
| Maximum height of tray | 1-80mm |
| Image accuracy | 85um |
| Imaging size | 430*430mm |
| Resolution | 36 LP/CM |
| Machine size | 860*1470*1880mm (L*W*H) |
| Machine weight | 580KG |
| operating system | WINDOWS 7/WINDOWS 10 |
| Power supply/power | AC110-220V 50-60HZ 1200W |
| Radiation safety test | <1 uSV/H |
