Leenol Electronic Intelligent Rack for 13 inch material-SMD2N-B5

Electronic intelligent rack-Barcode Type


Inquiry Now


Rack material: aluminum profile frame, anti-rust, anti-corrosion (with 304 stainless steel is the same food grade material, compared with stainless steel, no sharp corners, warping, to protect workers.) ; The baffle materials between storage locations are stainless steel wire and anti-static plastic baffle strips.

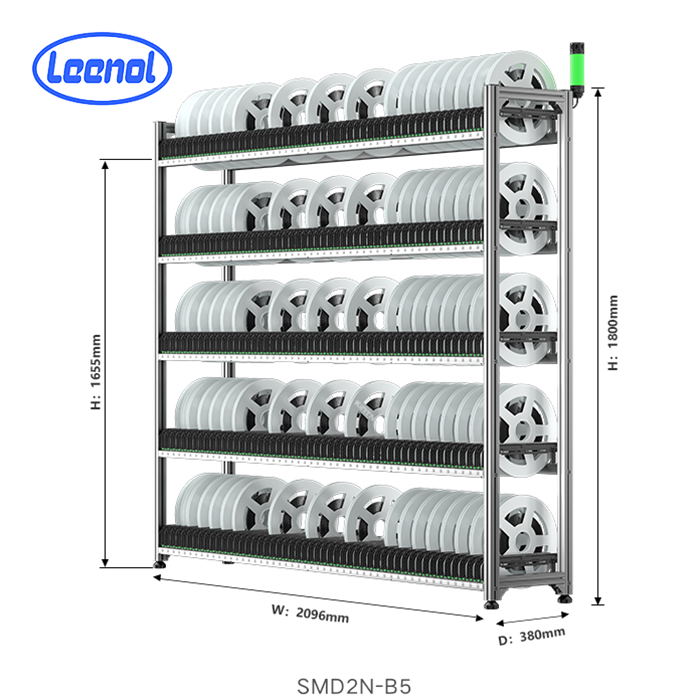

Rack structure: B5-type intelligent rack 5 layers single-sided, each layer 100 storage position, storage space width 16mm, storage position width can be adjustable, can store 500pcs 13-inch standard SMT material; The rack can be customized, such as: for 15 inch SMT material, the rack can be made into 4 layers, single-side.

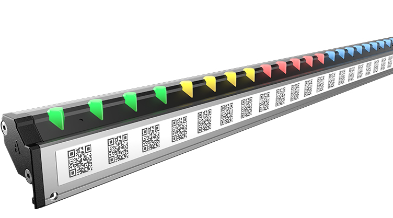

Electrical products: the lamp strip is an integrated design, the circuit board is not exposed, the maintenance and replacement is simple, the site workers can complete. One controller can be connected to 4 sets of material racks, and the cost of wiring and networking is reduced by 70%. Wireless controller and voice music alarm light and other functional options are available.


Model SMD2N-B5
Voltage DC24V
Working flow

100 indicators indicating the warehouse location ≤400mA@DC24V

Maximum total current of seven colors ≤6600mA@DC24V

IB Communication bus 38.4K baud rate, maximum transmission distance of 200 meters
Electric protection Over current, over voltage protection, reverse protection
Max indicate position 100
Response time within 30ms
Working environment

Temperature: -20℃ to + 50 ℃(-4℉ to +122℉)

Humidness:90% at 55℃
