ESD access control system

Why use Anti-static Access System?

Anti-static Access System (integrated static test data management access control system) is an advanced product combining static test, electronic access control system and computerized management software; in many places where electrostatic protection zone (EPA) is installed, electrostatic shoe and static wrist The tests are carried out in the traditional manual login or supervision mode, which is difficult to implement and even complete, and it is difficult to obtain the trust of customers and management. It also forms a great potential hole in the static grounding of personnel.

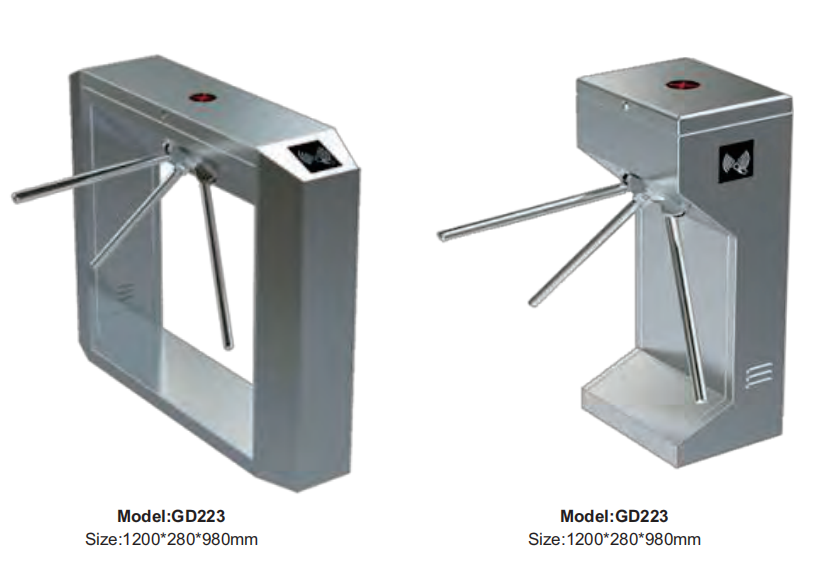

In view of these shortcomings, the anti-static access control system proposes a direct and effective solution to ensure that the operator is ready to statically ground the personnel when entering the EPA area; and combines the three-roller gate as the control device for the flow channel. It can provide an orderly and civilized way for the entry and exit personnel to prevent illegal entry and exit, and quickly control the downfall in emergency situations and organize personnel to evacuate.

• Rotating rod material: 304, stainless steel tripod turnstile rod with 3.0MM thickness,ensure that the external force is not deformed
• Enviroment: for indoor and outdoor use
• User: user over 1000mm in height, childeren to use it alone are not recommended
• Box material：SUS304 (customized)
• Internal structure: frame structure
• Passing frequency: 20-30 persons/min
• Channel width: 600MM
• Control method:
• Input voltage: AC220V
• Total power: 110W
• Operating temperature: -30℃ to +55℃
• Humidity: <95%, no condensiation of moisture
• Noise: 65dB below
• Operational cycle time: 3 million times or 3 years (MTBF)
• Average lifetime: 5 million times or 5 years
• Gate switching time: <0.5 seconds

Customaztion Solution：

1. Simple version of ESD access control:

Three test modes can be manually adjusted:

• Bracelet only
• Only for electrostatic shoes
• Simultaneous testing of wristbands and electrostatic shoes

2. Swipe card + ESD access control

• 7-inch LCD screen can display employee information and test static resistance value,
• A variety of card swiping modes are available,
• The web version of the access control software is easy to install and operate, and all test records can be queried.

3. Fingerprint + ESD access control

• 7-inch LCD screen can display employee information and test static resistance value,
• A variety of card swiping modes are available,
• The web version of the access control software is easy to install and operate, and all test records can be queried.

4. Face recognition + ESD access control

• 7-inch LCD screen can display employee information and test static resistance value,
• A variety of card swiping modes are available,
• The web version of the access control software is easy to install and operate, and all test records can be queried.
