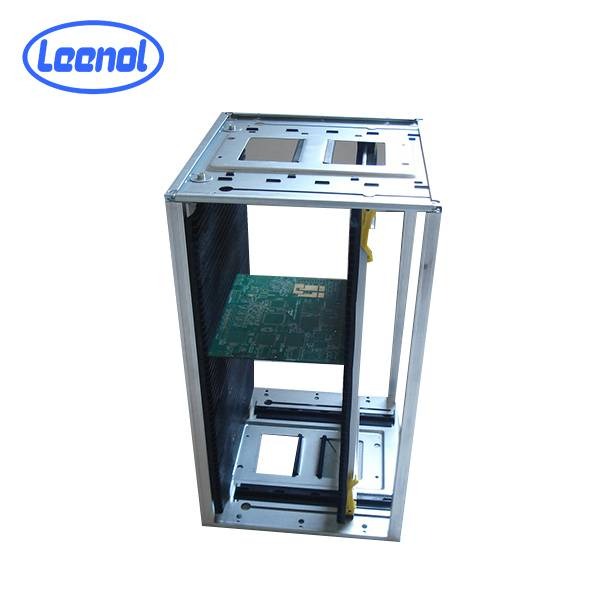

ESD PCB Magazine Racks are designed for stacking/Storage of assembled PCB. We keep all the three popular sizes in stock. Both screw type and Gear type of magazines are available in stock.
Suface resistance: 10e3-10e9 ohm
Contour Size: 355*320*563mm
50 pcs of plated can be stored
The specification of PCB plates: 355*(50-250)mm
Guide slot of side plate: Depth 3mm, wide 5.5mm, pitch top and bottom base is metal base.
Fix method: scres or gear track adjustable
Side plate: five pieces assembled
Weight: 5.0kg
B803 PCB magazine rack, Common type (80°C) and heat-resistance type(120°C, 200°C) are available.
| Model No. | Base | AJ Method | Temp | Outer Dimension | Card Guide | Ref.Position | Slots | Wight(kg) | |||||||
| L | W | H | AJ | C | D | E | P | A | B | ||||||
| LN-B803 | M | Screw/Gear Track | 80℃ | 355 | 320 | 563 | 50-250 | 353 | 3.0 | 5.5 | 10 | 34 | 34 | 50 | 5 |
| LN-B803HT | M | Screw/Gear Track | 120℃ | 355 | 320 | 563 | 50-250 | 353 | 3.0 | 5.5 | 10 | 34 | 34 | 50 | 5 |
| LN-B803HT200 | M | Screw/Gear Track | 200℃ | 355 | 320 | 563 | 50-250 | 353 | 3.0 | 5.5 | 10 | 34 | 34 | 50 | 6 |
Leenol PCB Rack
